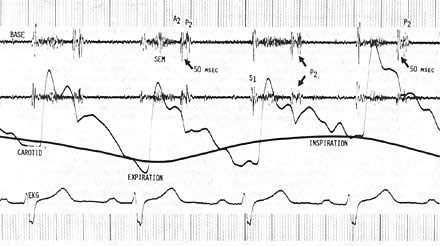

Figure 200g Simultaneous base and apex phonocardiogram
recorded together with the carotid pulse during with quiet respiration
in a young woman with a large atrial septal defect. Wide, fixed splitting
of S2 is present, and P2 is easily recorded at the apex. A prominent
systolic ejection murmur (SEM) is recorded at the base and is due to
the large stroke volume across the right ventricular outflow tract.
|
